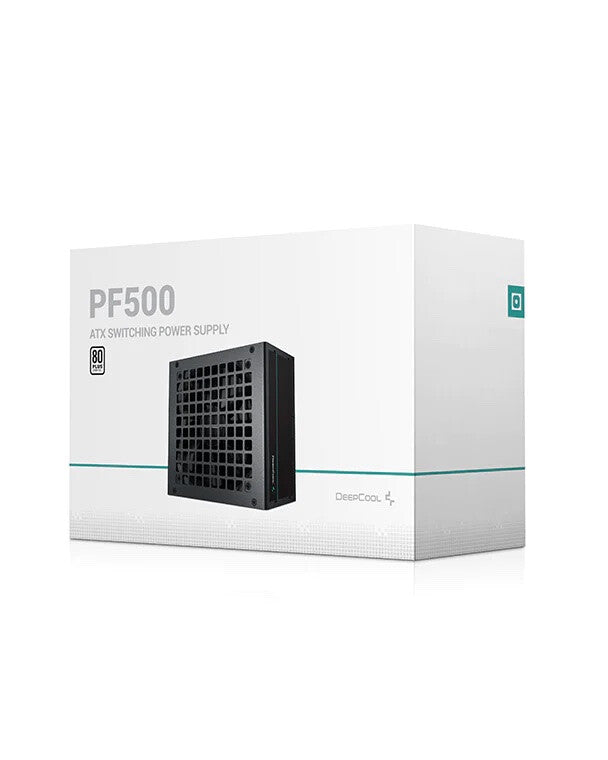

DeepCool PF500 power supply unit 500 W 20+4 pin ATX ATX Black

Name: DeepCool PF500 power supply unit 500 W 20+4 pin ATX ATX Black
Brand: DeepCool
SKU: R-PF500D-HA0B-UK
Price: 31.27 GBP
Availability: InStock

SKU: R-PF500D-HA0B-UK

£31.27

Quantity select

21 in stock. Need more? Contact us!

FREE carbon neutral delivery on orders over £99

Description

Delivery & Returns

Got questions? Call our team on 020 8208 1234

£31.27

Quantity

Quantity select

Description

DeepCool PF500. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.

Warranty: 3 yers

View Product Specifications

Reviews

Frequently Asked Questions

When will it arrive?

Any order over £59 wil be shipped on our free 2-3 working day service, if you opt for Next Working Day shipping then this will be with you the next working day between 09:00 and 18:00. Deliveries to Northern Ireland, Channel Islands and the Scottish Highlands will be on a 3 day service.

What information do I need to provide for the delivery?

How long is the returns policy?

Delivery & Returns

How long will it take to receive my order?

We provide multiple shipping options for our customers including next day delivery. If you opt for Next Working Day shipping order needs to be placed before 2 PM; all orders placed after 2pm will be processed following working day and then this will be with you the next working day between 09:00 and 18:00. Deliveries to Northern Ireland, Channel Islands and the Scottish Highlands will be on a 3 working day service.

Can I choose a specific day to receive my order?

This is something that we are working hard to bring to you - we recognise that having deliveries on preferred days not only makes it easier for you but it is also great for the environment. By having deliveries arranged on days that you are going to be in or consolidating your orders to arrive to you at the same time means that the courier won't need to come back multiple times due to missed deliveries or multiple deliveries.

Can I change my delivery address once the order has been placed?

Our systems are highly automated, where possible we will do our utmost to accommodate this. To ensure we maintain a high delivery success rate most of our orders are picked and prepped for shipment within 30 minutes

How do I return my order?

If you need to return your order please raise a return through your order page detailing the reason for return. Once this form has been submitted it will be reviewed by the Returns Department who will contact you to arrange the return.
Please note the returns department may ask for more information such as the serial number(s) and images where applicable to process the return.

How long do I have to return an item?

For most products bought online, you have a legal right to change your mind within 14 days and receive a refund. If you wish to return unwanted products, you must let us know that you want to return them within 14 calendar days from the day after delivery. The item must also be returned to us within 7 working days from approval of return and receipt of the return label

Are returns free?

Returns for faulty / damaged items will be free of charge
Returns for unwanted items that have no fault will incur a minimal returns fee - delivery charges will not be refunded

Save On Delivery Carbon Neutral Deliveries Free Standard Delivery Over £99

Power
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Efficiency	85%
Max output current (+5Vsb)	2.5 A
Max output current (-12V)	0.3 A
Max output current (+5V)	15 A
Max output current (+12V)	40 A
Max output current (+3.3V)	15 A
Combined power (+5Vsb)	12.5 W
Combined power (+5V)	100 W
Combined power (+12V)	480 W
Combined power (+3.3V)	100 W
Input current	4 A
AC input frequency	50 Hz
AC input voltage	200 - 240 V
Total power	500 W

Ports & interfaces
Cabling type	Non-Modular
PCI Express power cable length	51 cm
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power cable length	150 mm
Peripheral (Molex) power connectors (4-pin)	1
SATA power cable length	450 mm
Number of SATA power connectors	3
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX

Performance
Mean time between failures (MTBF)	100000 h
Bearing technology	Sleeve
ATX version	2.4
Supported motherboard form factors	ATX
80 PLUS certification	80 PLUS White
Power supply unit (PSU) form factor	ATX
Purpose	PC

Design
Fan diameter	12 cm
Product colour	Black

Operational conditions
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions
Height	86 mm
Depth	140 mm
Width	150 mm

Technical details
Sustainability certificates	ErP

Power
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Efficiency	85%
Max output current (+5Vsb)	2.5 A
Max output current (-12V)	0.3 A
Max output current (+5V)	15 A
Max output current (+12V)	40 A
Max output current (+3.3V)	15 A
Combined power (+5Vsb)	12.5 W
Combined power (+5V)	100 W
Combined power (+12V)	480 W
Combined power (+3.3V)	100 W
Input current	4 A
AC input frequency	50 Hz
AC input voltage	200 - 240 V
Total power	500 W

Ports & interfaces
Cabling type	Non-Modular
PCI Express power cable length	51 cm
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power cable length	150 mm
Peripheral (Molex) power connectors (4-pin)	1
SATA power cable length	450 mm
Number of SATA power connectors	3
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX

Performance
Mean time between failures (MTBF)	100000 h
Bearing technology	Sleeve
ATX version	2.4
Supported motherboard form factors	ATX
80 PLUS certification	80 PLUS White
Power supply unit (PSU) form factor	ATX
Purpose	PC
